Hang 400+401

Automatic Ringbinder assembly line

Make Hang

Model 400+401

Year 2002

Feeder automatic case feeder, takes a case from the bottom of the pile, non stop feeding

Creasing station Can crease 2 creases, uses pneumatic arm to make 2 creases

Ringbinder station automatic feeding of the ringbinder mechanics

Riveting

Rivet head distance 90 - 300 mm

Case thickness 1 - 3.5 mm boards

Min case size 190 x 320 mm

Max case size 350 x 650 I5542423 mm

Speed up to 40 cycles per I5542423 minute

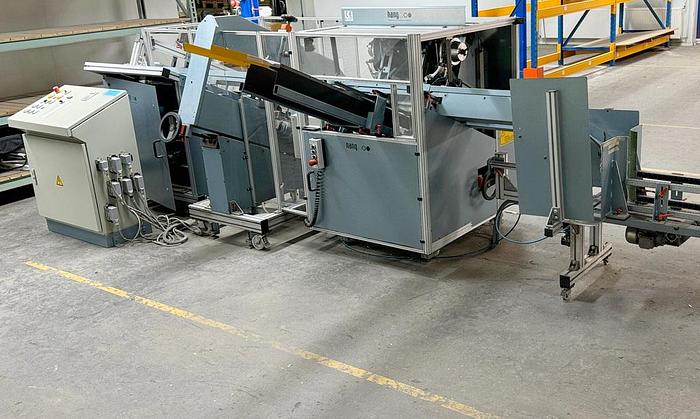

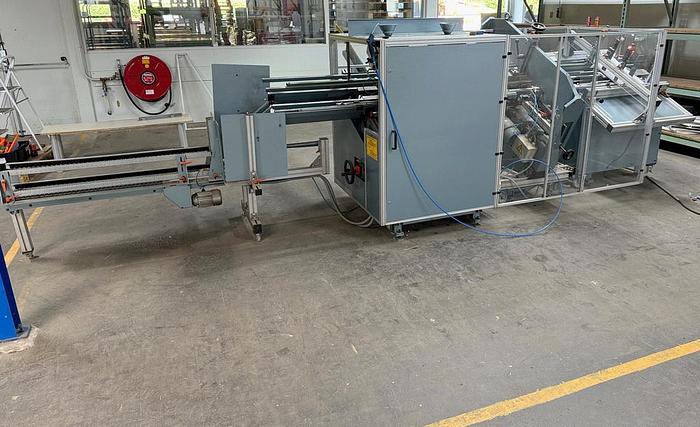

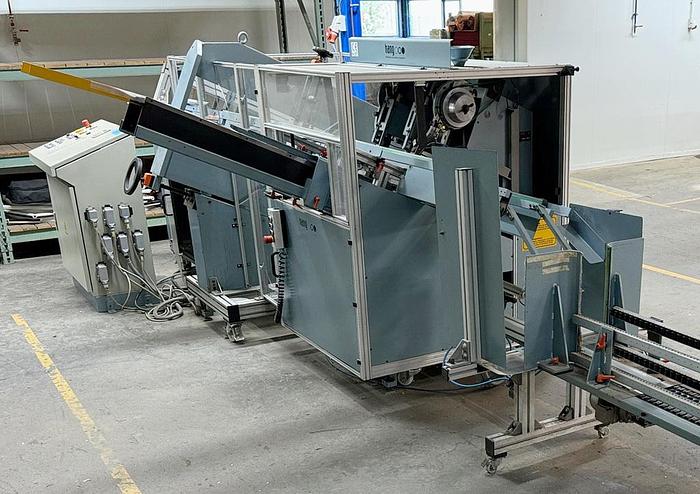

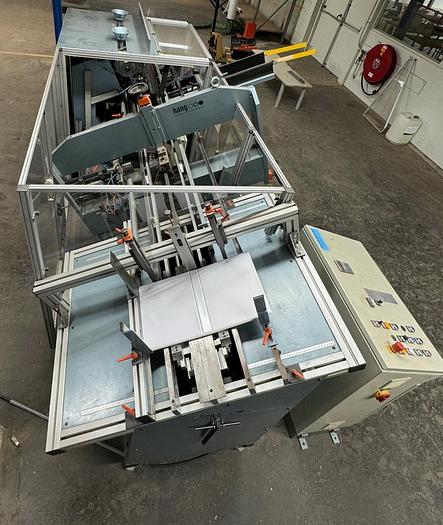

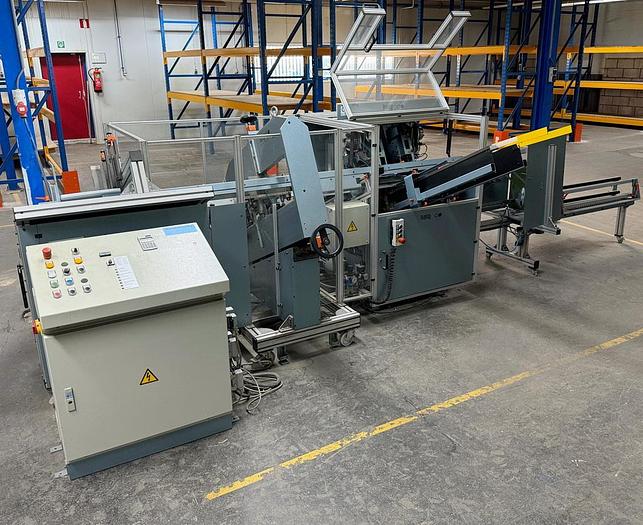

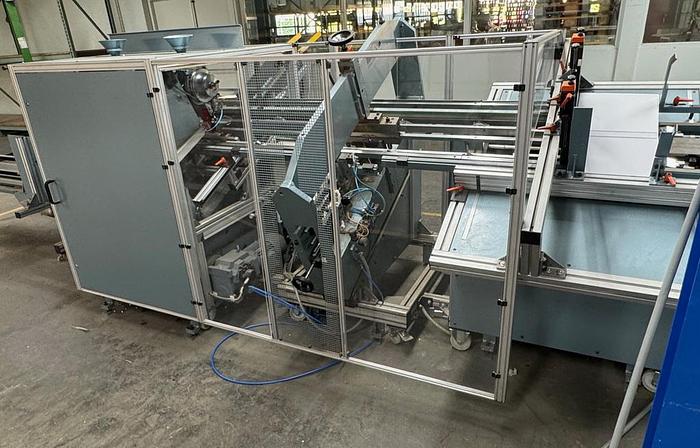

Details Fully automatic line for ringbinders consisting of a automatic case feeder with creasing, automatic mechanism feeder with rivet placement

Available direct
