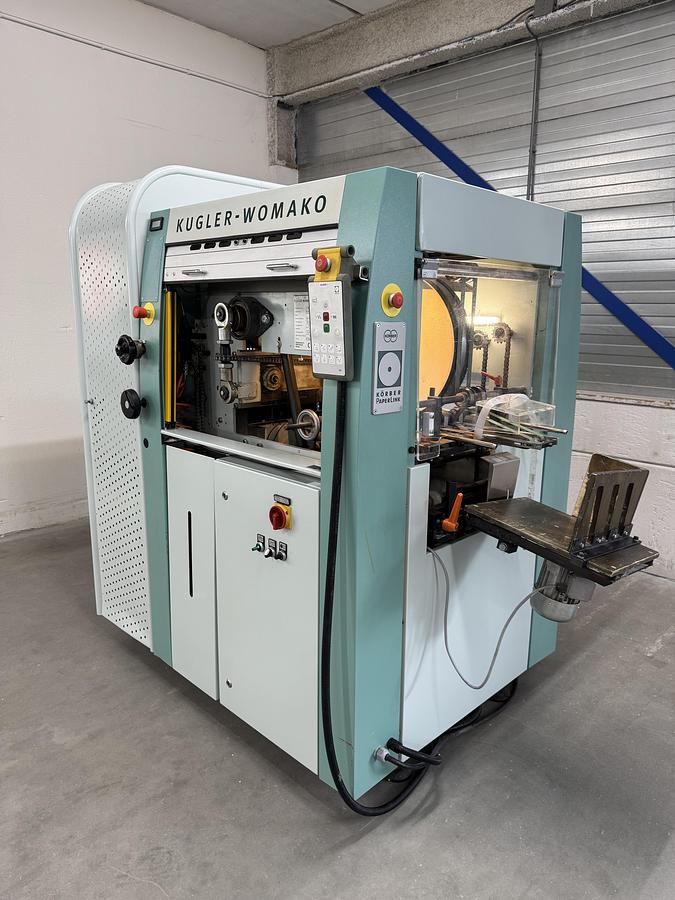

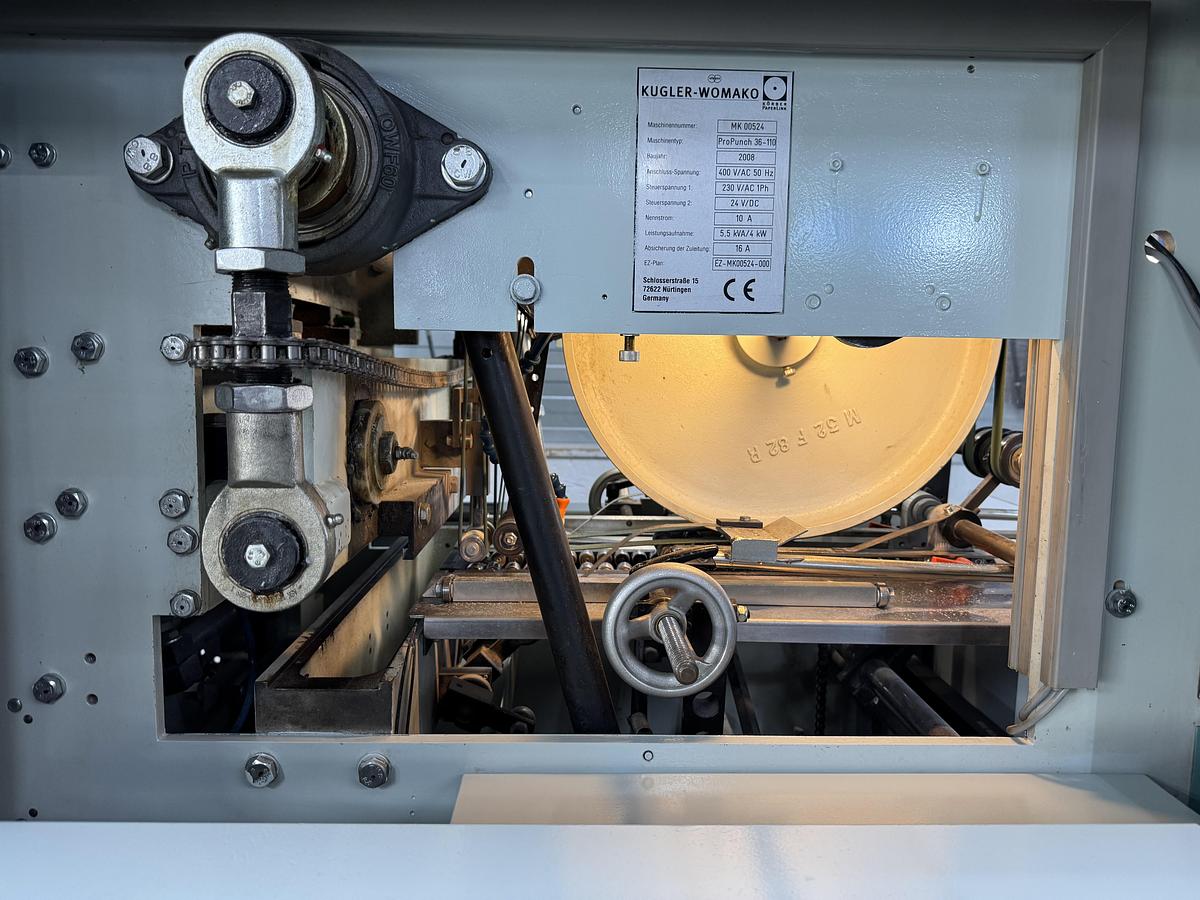

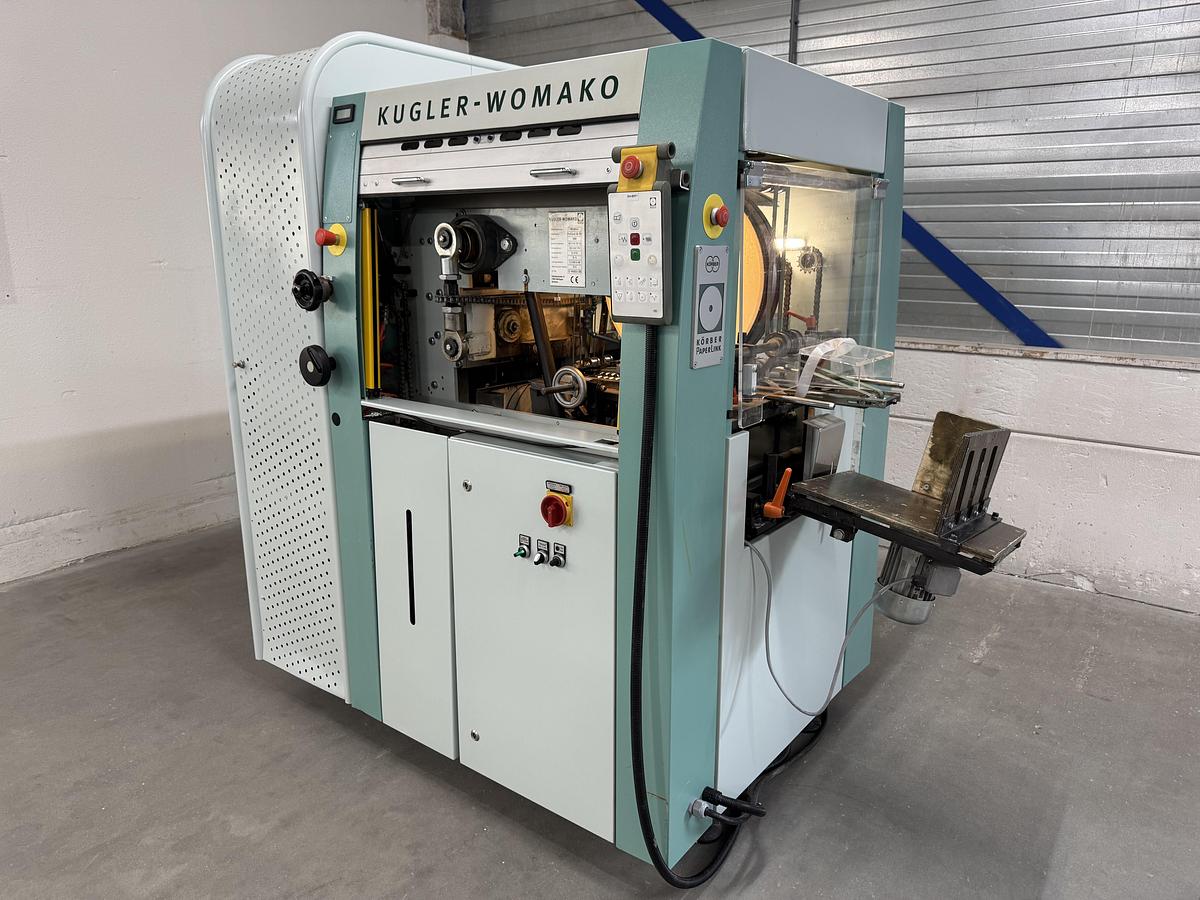

Kugler-Womako ProPunch 36-110

Kugler-Womako ProPunch 36-110 (2008) – high-speed automatic punching machine

Year of manufacture: 2008

Model: ProPunch 36-110

Manufacturer: Kugler-Womako (Körber PaperLink)

Power supply: 400 V / 50 Hz – 3-phase

Control voltage: 230 V AC & 24 V DC

Power consumption: 4 kW (5.5 kVA)

Rated current: 10 A

Protection: 16 A

Compressed air required

Technical specifications:

• Max. sheet size: approx. 360 × 360 mm
• Paper weight: 60 – 400 g/m²
• Speed: up to 110 strokes per minute
• Punching thickness: up to 3 mm (material dependent)

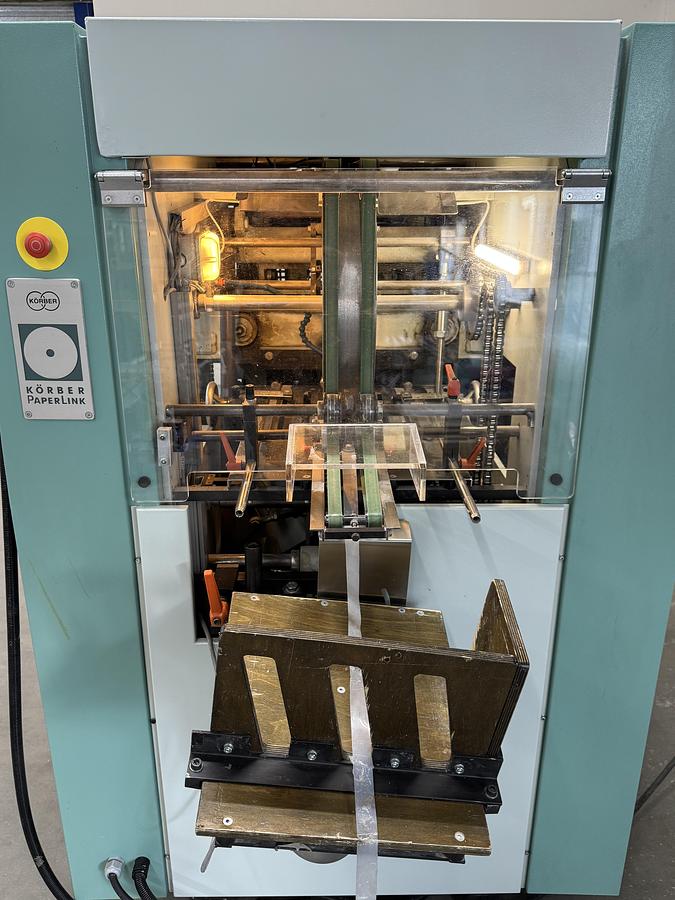

• Automatic pile feeder with transport system
• Fast and easy tool change

Condition and notes:

• Very good working condition
• Equipped with a light curtain, eliminating the need to open the safety covers during operation
• Light curtain is easily removable if preferred
• High-speed version – faster than standard ProPunch machines

Machine is ready for production, ideal for calendars, index sheets and other punching jobs
